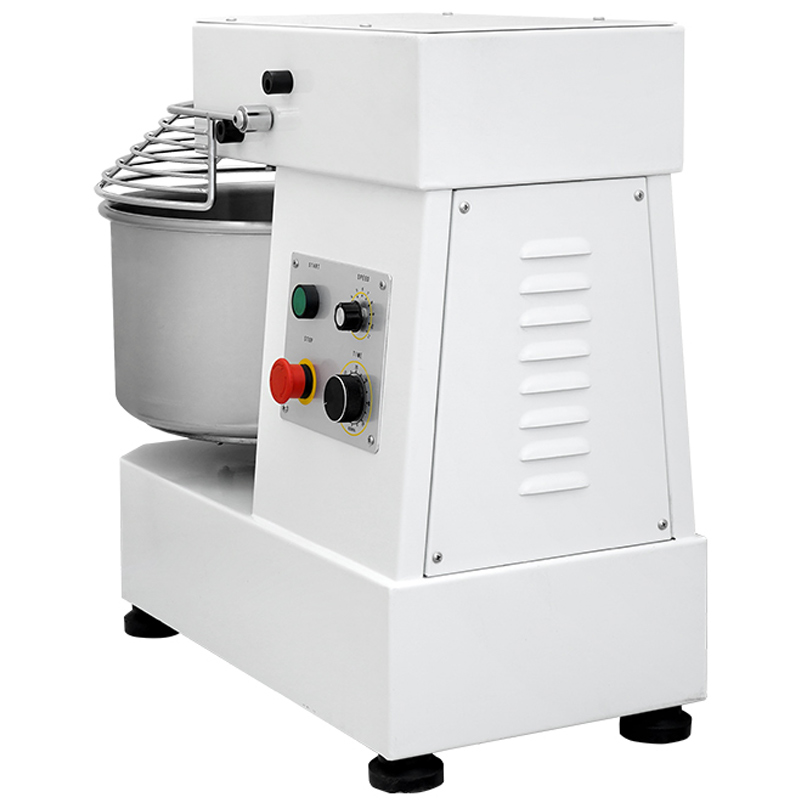

60L Variable Speed Spiral Mixer

Model:LB60/LB60D

Dough Mixer Features:

● CE and ETL Listed
● Stepless speed controller spiral mixer, you don’t need to stop the machine from changing the speed.
● The speed range from 100~240r/min, the big speed range can mix the flour more finely.
● Single phase and three phases optional, come with the timer and emergency button.
● Belt and gear transmission system, Copper motor, powerful and quiet,wear-resisting opti belt.
● Capacity from 10L to 60L, Safety switch, and motor overload protection.

Variable Speed Spiral Mixer Specifications:

220V,2.5kw
Capacity:60L
Mixing speed(r/min):100-240(LB) 100/240(LBD)
Bowl Speed (r/min): 10-28(LB) 10/28(LBD)
Maxing kneading capacity:25kg
Net Weight:130kg
Dimensions:850x530x780mm

Description

LB Series Spiral Mixer Come With Stepless Speed Controler

This Stepless Speed Controler Spiral Mixer has a big capacity of 10L to 60L.
This Machine’s biggest feature it’s you can change the speed with the nonstop machine.
Also, it can make a single phase no matter for 10L or 60L.
Use effect has been praised by users for many years since the gap between the hook and bowl is less than 5mm.
Which allows it to obtain the best dough kneading performance.
Whether you’re prepping pizzas, cookies, or bread.
The LB Spiral Mixer Machine is a durable powerful machine every kitchen needs, it works its hardest and never gets tired!

LB Series Spiral Mixer

● Engineered with Precision
Featuring belts from German-origin Optibelt and American-origin Gates, for
relentless operation up to 8 hours a day, belts backed by a 3-year warranty.
● Superior Motor Efficiency
A robust single- phase system powered by a pure copper motor ensures high
torque, exceptional performance, low noise output, and minimal heat
generation.
● Variable Speed Control
Offers 10 levels of adjustable speed, ranging from 100-240 revolutions per
minute(r/min), for precise control over mixing processes such as low speed
for pizza dough ,high speed for french dough.
● Superior Motor Efficiency
A robust single- phase system powered by a pure copper motor ensures high
torque, exceptional performance, low noise output, and minimal heat
generation.
● Enhanced Safety Features
Equipped with Swiss-originABB emergency stop and start buttons for
increased safety.
● Patented Mixing Technology
The mixer’s hook maintains a gap of less than 5mm with the bowl, ensuring
superior mixing efficiency and effectiveness, especially for flour, rapid mixing
in 5 minutes.

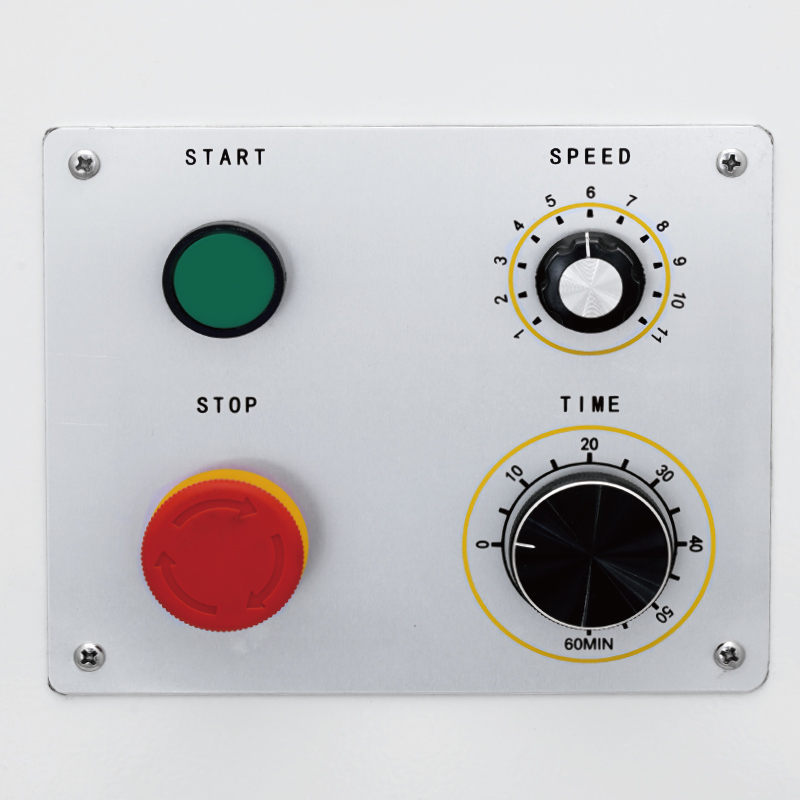

High efficiency The gap between the hook and bowl is less than 5mm, obtaining the best dough kneading performance.	Easy Control Come with emergency stop control, Speed control, Timer, and power no switch, and timer, and it”s easy to use.	Machine-Protection Integrated emergency stop, motor overload protection, cover opening protection, and bowl sliding protection ensures the operator’s safety.

Belt and Chain System
This Stepless Speed Controler Spiral Mixer comes with a belt and chain system,
It runs with less noise and is safer and more durable. All the Construction is steel
and comes with rubber feet,also you can choose different colors of paint.

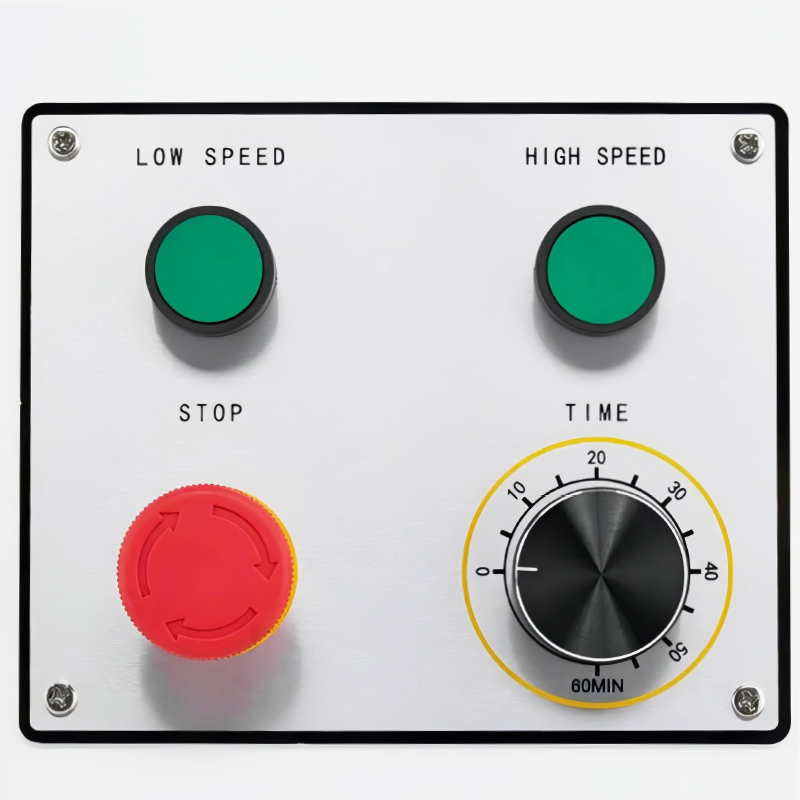

LB	LBD

PRODUCTS ITEMS

Item	Description	Dimensions (LxWxH)	Capacity
LB50/LB50D	50L Dough Mixer Machine	850x530x715mm	50L	+
LB40/LB40D	40L Spiral Mixer	830x480x715mm	40L	+
LB30/LB30D	30L Spiral Mixer	730x440x685mm	30L	+
LB10/LB10D	10L Spiral Mixer	685X400X635mm	10L	+
LB60A/LB60DA	60L Spiral Mixer	912x535x937	60L	+
LB50A/LB50DA	50L Spiral Mixer	912x535x877mm	50L	+
LB40A/LB40DA	40L Spiral Mixer	830x480x877mm	40L	+
LB30A/LB30DA	30L Spiral Mixer	735x440x765mm	30L	+
LB20A/LB20DA	20L Spiral Mixer	690x395x715mm	20L	+
LB20/LB20D	20L Spiral Mixer	685x400x635MM	20L	+
