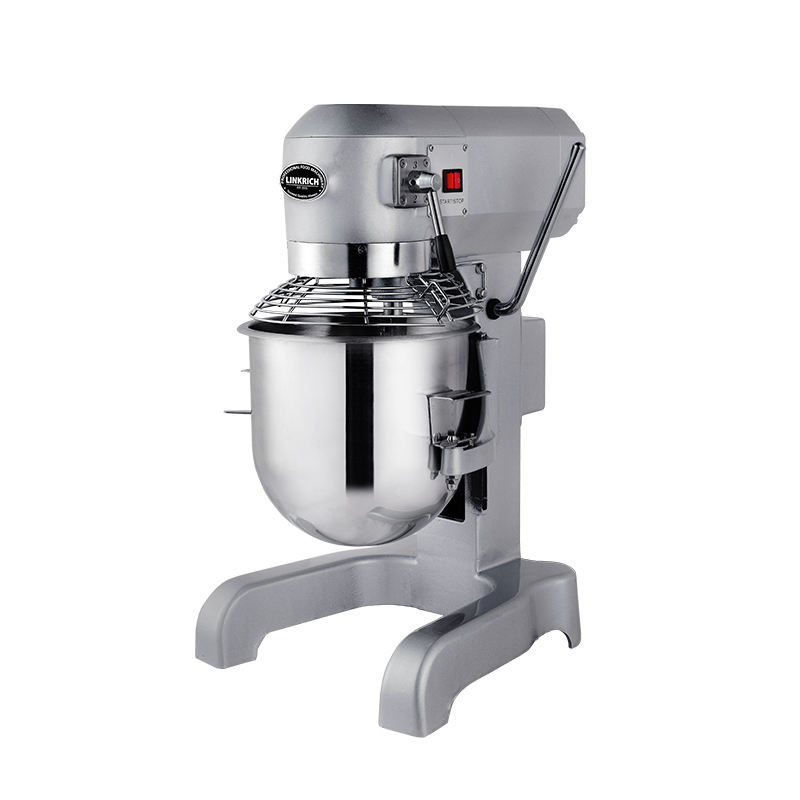

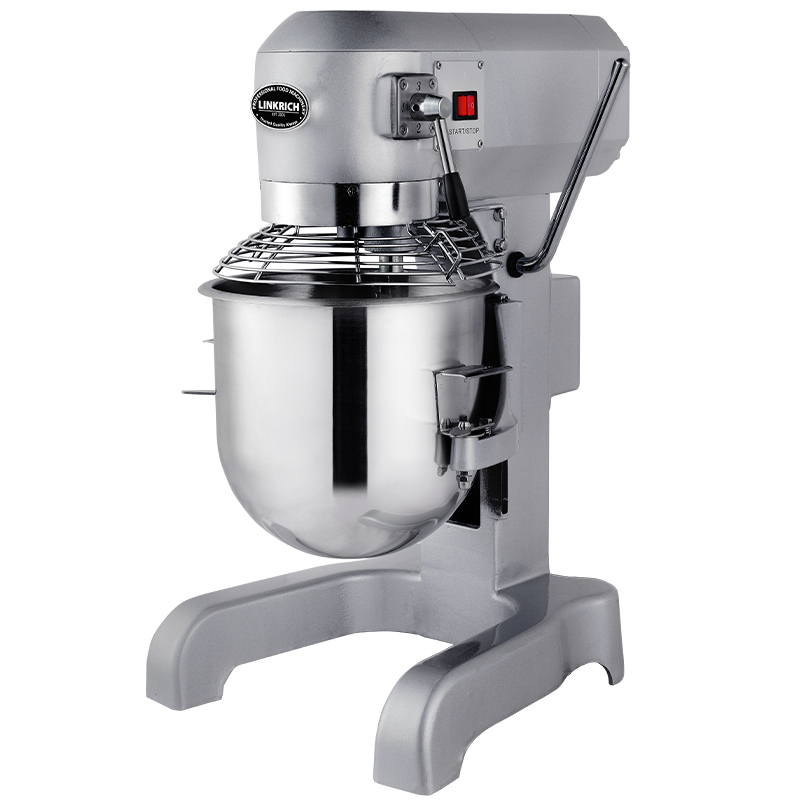

B10 Planetary Mixer

Model:B10

Planetary Mixer Features

● CE certifications are available
● Heavy duty for 2kg flour
● Gear with high wear resistance of tin bronze,durability
● Overall tensile bowl,without welding interface,more durable
● Good Painting,more beautiful

Planetary Food Mixer fications

B10 Planetary Food Mixer
220V,0.37kw
Capacity:10L
Mixing speed:67/189/362r/min
Maxing kneading capacity:2kg
Net Weight:65kg
Dimensions:450x370x660mm

Description

Planetary Mixer

Firstly:10L Planetary Mixer Great for mixing, beating, whipping batters, cake mixers, and the occasional dough or pastry.
Thanks to their multitude of functions, they are the best partner for professional cooks. Secondly: An ergonomic style bowl lift and
a removable safety guard make it incredibly easy to remove them for cleaning and maintenance without too.Thirdly: The non-welded
brushed stainless steel bowls adopt a one-step molding technique which enhances durability. Fourthly: Supplied standard with stainless
steel safety guard, stainless steel bowl, beater, whip, and dough hook for increased utility and functionality.

B Series Spiral Mixer

● Gear-Driven Transmission
Prevents the risk of drive system slip that can happen with belt driven
models. Gear-driven systems are less prone to detachment compared to
belt-driven systems,ideal for high-volume production environments such
as bakeries, pizzerias, and central kitchens.
● Versatile Speed Options
Equipped with a 3-speed gearbox for optimal mixing efficiency – the dough
hook operates at a low speed of 67 RPM for kneading bread and pizza
dough, the flat beater at a medium speed of 189 RPM for mixing liquids
and soft foods, and the wire whisk at a high speed of 362 RPM for blending
dry ingredients.
● Powerful Motor and System
Features a robust single-phase system powered by a pure copper
motor, delivering high torque, exceptional performance, and
reliability with low noise and minimal heat production.
● Enhanced Safety Features
Incorporates Schneider emergency stop and start buttons,
alongside an automatic safety overload switch to prevent damage
by cutting power during overdraw. Operational safety is further
ensured as the mixer halts if the bowl guard is open, the bowl is
lowered, or removed

Dough Hook
Best for heavier doughs
like pizza, pasta,
and bread doughs

Wire whip
Best for whipping and
whisking eeg whites,
cream,and frostings

Flat Beater
Best for beating frostings and
batters, mixing cookie dough,
and creaming ingredients

Control Panel
The Mixer has an independent on and stops switch.The mixer has three
different speeds control – 1-low,2-middle and 3-high. The 1 speed is for
the Doughhook, the 2 speed is for the mixing paddlethe 3 speed is for
the Whisk. It’s easy to operate.

Safety Bowl Guard
This mixer has a safety steel bowl guard for added safety while the
unit is operating. The bowl guard also moves around so you can
add ingredients to the bowl with ease.

PRODUCTS ITEMS

Item	Description	Dimensions (LxWxH)	Capacity
LR-FM-5	5L Tabletop Food Mixer	370x220x410mm	5L	+
LR-FM-7	7L Tabletop Food Mixer	410x250x415mm	7L	+
B8CE	B8CE Tabletop Food Mixer	470x255x465mm	7.5L	+
B10CE	10L Planetary Food Mixer	450x370x660mm	10L	+
B15CE	B15CE Planetary Food Mixer	540x415x740mm	15L	+
B20C	20L Planetary Food Mixer	570x440x770mm	20L	+
B20CE	Planetary Food Mixer 20L	570×440×770mm	20L	+
B25CE	25L Planetary Food Mixer B25	580x450x820mm	25L	+
B30	Baking Mixer Machine 30L	680x540x1100mm	30L	+
B30CE	30L Food Mixer	680x540x1100mm	30L	+
B40	Planetary Food Mixer 40L	680X540X1150 mm	40L	+
B40CE	Planetary Food Mixer 40L	680X540X1150 mm	40L	+
B60CE	Planetary Food Mixer 60L	1030x620x1430mm	60L	+
B80CE	Planetary Food Mixer 80L	1200x700x1650mm	80L	+
M20A	Planetary Food Mixer 20L	570×440×770mm	20L	+
M25A	Commercial Planetary Mixer 25L	580x450x820mm	25L	+
M30A	Planetary Mixer 30L	680×540×1100mm	30L	+
M40A	40L Planetary Mixer M40A	680mm×540mm×1150mm	40L	+
M60A				+
